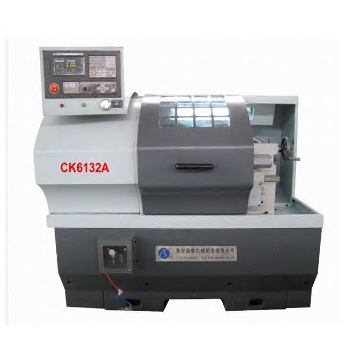

Horizontal Turning CNC Lathe CK6132A

Next > >

<< Previous

Get a Price/Quote

Send Inquiry

Product Code : XAK

Brand Name : XAK

Price And Quantity

Product Description

A. Standard Configuration and Specification

C. Main features

Single spindle
May fix with hydraulic chuck system.
Integrated automatic lubrication system.
High precision CNC lathe with good performance-price radio.
Electronic hand wheel equipped easy operation.
The carriage adopts plastic paste processing wear small, high precision, long life.
Feed of X Z shaft is driven by ball screw with servo-motor.
Rotary various work piece surface automatically turning, precision machining.

Special configuration

Optional brands of CNC systems	SIEMENS FANUC
Optional types of the tool post	horizontal Six-station, horizontal eight-station
Optional types of the workpiece clamping	hydraulic chuck pneumatic chuck spring chuck
Optional types of the tailstock	Hydraulic tailstock pneumatic tailstock
Optional patterns of feeding	Automatic feeding Customized programs alone

Specification

ITEMS	Specifications
Max. swim over bed	320mm
Max. swim over carriage	110mm
Max. length of work piece	450mm
Range of spindle speed	100-2500rpm
Spindle bore	40mm
Taper of spindle bore	MT5
Stations of tool carrier	4/6/or gang-type tool carrier
Min. setting unit of motor	(Z) long 0.001mm,(X) cross0.001mm
Moving speed of post	(Z) long 8 m/min,(X) cross 4m/min
Taper of tailstock quill	MT3
Max. range of tailstock quill	100mm
Motor power	4KW
Packing size(length — width — height)	1820 mm—1100 mm—1550mm
Net weight	1100kg
