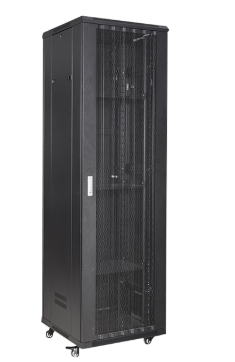

Wholesale WJ-802 server cabinet

Brand NINGBO WU JIANG

Model No WJ-802

Type Server cabinet

Sizeï W800mm*D600mm*H2035mm

Material SPCC high quality cold-rolled steel

Application Installing servicer Œinterchanger etc.

Standard size Meet industry standards.

 Standard :

l Comply with ANSI/EIA  RS-310-D、IEC297-2DIN41494;PART1 DIN41494; PART7, ETSI  standard.

Feature:

• l Width of 800 mm
• l Depth of 600, 800,1000 mm is optional;
• l Exquisite design with precise dimension and craftsmanship;
• l High ventilated single mesh front door with double mesh rear door ;
• l R type Mounting profiles, free of static;
• l Add square box to reach 19inch;
• l Adjustable feet and heavy duty castors are available simultaneously;
• l Cable entry on the top cover and bottom panel with adjustable sizes;
• l Optional  installation of plinth to enable cabinet fixation, under-base cable entry/ventilation;
• l Efficient and reliable cabinet connection by baying kit;
• l Removable side panels to ease maintain.

Material:

l SPCC cold rolled steel;

Thickness: mounting profile 2.0mm, mounting angle 1.2mm, others 1.2mm

Surface finish:

l Degreasing, pickling, rust-proof phosphate, pure water cleaning, electrostatic spraying

Degree of protection

l IP20

Loading capacity:

l Static loading: 800KG(with adjustable feet)
