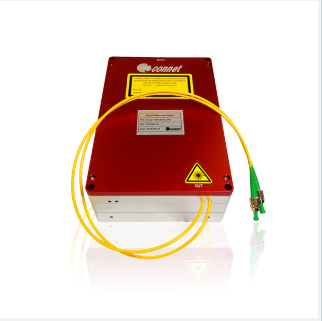

1550nm Short Pulse Fiber Laser for LiDAR

1550nm Short Pulse Fiber Laser for LiDAR
1550nm Short Pulse Fiber Laser for LiDAR
Send Inquiry
Product Code : KNT
Brand Name : KNT
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Piece/Pieces
  • Price Range
  • 1.00 - 9999.00 USD ($)
  • Price
  • 0.5-9999 USD ($)
Product Description

Features:

  • High peak output: 10kW (typ.)
  • Adjustable pulse duration: 0.5~200ns
  • Diffraction-limited output beam
  • Maintenance-free operation
  • Compact and rugged design

Applications:

  • LiDAR
  • Range finding
  • Fiber sensing
  • 3D airborne laser mapping
  • Atmosphere and pollution monitoring
  • Research & development

Specifications

Parameter

Unit

Specification

Min

Typ.

Max

Part No.



VFLS-1550-M-PL

Wavelength Range

nm

1540

1545/1550

1565

Peak Power

kW

-

10

-

Pulse Width1

ns

0.5

-

200

Repetition Rate2

kHz

1

-

1000

Average Power

W

-

-

5

Beam Quality

M2



-

1.2

Output Power Stability (15min)3

%

-

±0.5

-

Output Power Stability (8hours)3

%

-

±1

-

Output Light Isolation

dB

30

-

-

Polarization



Random

Output Fiber Length

m

>0.3

Optical Connector



FC/APC or Collimator

Pulse-triggered Mode



Internal or External TTL trigger

Output Fiber Type



SM or LMA

Power Supply

VDC

12~24

Communication Interface



RS232

Operating Temperature


-25

-

50

Storage Temperature


-40

-

85

Dimensions

mm

200(L)X135(W)x40(H)
  • Pulse width is optional or tunable from 0.5-200ns;
  • Repetition rate is optional or tunable from 1kHz-1MHz;
  • The output power stability is measured under 25, after 30 minutes warm-up.

Ordering Information

  • VFLS-15xx PW-RR-PP-PL
  • PW: Pulse width in ns
  • RR: Repetition rate in kHz
  • PP: Peak power in KW, 04-4kW
  • Example: VFLS-1550-10-50-10-PL, 1550nm module packaging pulsed fiber laser, 10ns pulse width, 50kHz Repetition rate, 10kW Peak power.
