Introduction

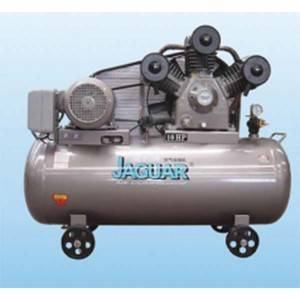

The air compressor is a specific type of gas compressor. Its main components are dust screen, oil filter, oil separator, lubricating oil, suction pressure regulating valve, compressor body, motor, oil cooler, post-refrigerator, belts, automatic temperature adjuster, unidirectional valve , and electromagnetic valve. Our company uses air compressors from Yaoquan Electrical Equipment Co., LTD as part of the auxiliary equipment to manufacture footwear. It can work with a single power supply and condensed air. This gas compressor has a cooling system inside which makes installation easier.
Application
An air compressor is widely used in manufactures, including the production of footwear, trademarks, stickers, umbrellas, raincoats, portfolios, reticles, school supplies, inflatable toys, waterbeds, blinds and vacuum packages. In addition, hard / soft leather and PVC clothing (20% -100%) can be processed by this air compressor.
Parameters:
Type | FG-40 | FG-50 | FG-75 | FG-100 | FG-150 |
Capacity / Working pressure
(m3 / min / MPa) | 0.36 / 0.7 | 0.48 / 0.7 | 0.67 / 0.7 | 0.9 / 0.7 | 1.5 / 0.7
|
Power (KW) | 3 | 4 | 5.5 | 7.5 | 11 |
Weight (kg) | 150 | 200 | 260 | 328 | 450 |
Machine size (mm) L * W * H | 1166* 450 * 810 | 1375 * 500 * 970 | 1450 * 550* 1070 | 1555 * 625* 1175 | 1625 * 670 * 1370 |
Cylinder Diameter * Cylinder Number | 80 * 2 | 80 *3 | 100 * 2 | 100 * 3 | 120 * 3 |
Rotation Speed | 870 | 760 | 870 | 830 | 735 |
Air storage tank (m3) | 0.08 | 0.13 | 0.17 | 0.25 | 0.3 |
