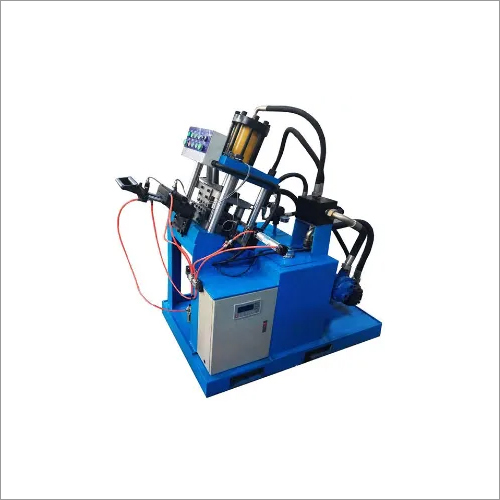

This machine is suitable for producing U staple such as N staple, K staple, carton staple, etc.
Heavy punching method is abandoned in this machine, and it adopts a hydraulic system for implementation of components, PLC controlled, with characteristics of safety operation, stable performance, low noise and high efficiency.
Specifications | Unit | TJB-U25 | TJB-U60 | |
Nominal Capacity | KN | 250 | 630 | |
Slide Stroke Per Minute | Times/min | 90-170 | 80-100 | |
Line Plate width | mm | 60-20 | 60-130 | |
Line Plate thickness | mm | 0.4-0.7 | 1.0-1.35 | |
Overall dimension
| F*B | mm | 1200 | 1250 |
L*R | mm | 1300 | 1300 | |
H | mm | 1550 | 1650 | |
Motor | kw | 4 | 5.5 | |
Weight | kg | 1500 | 1700 |
1.wire flattening machine
The frame work adopts the whole casting technique, so its stability is high. Equipped with specialized polished rod wire discharger, which can adjust the discharge speed for different specifications rate rapidly. It is used to suppress various specifications flat wire (galvanized wire, copper wire) used by box nails.
4. End products
