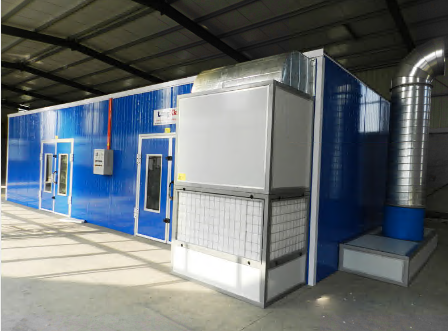

Outside Dimension(mm)LxWxH | 20000x5000x3200 |
Painting Room Dimension(mm)LxW | 4900x4900 |
Drying Room Dimension(mm)LxW | 14950x4900 |
Incoming Door Dimension(mm)LxW | 1900x2200 |
Delivery Door Dimension(mm)LxW | 1900x2200 |
Sliding door | One sliding door, 2000mm*2200mm,connected paint booth with drying booth. The finished products could be moved into the drying room through this door. |
Wall Panels | 50mm EPS colorful steel skin panel, steel 0.4mm thick,tongue groove style, compound construction, anti-flame and heat-insulation. |
Grilles | 30mm*4mm flat iron,12#channel steel |
Water Curtains | Dimension:4000x400x1500mm(LxWxH),stainless steel. |
Water Pump | Brand:Lailibao, capacity:7m3/h, lift:18m, rotate speed:2860rotate/m power:750W |
Lighting | Painting room: 6units x 3pieces=18piecesx16w LED lamp; Baking room: 12 pieces x 16w LED lamp |
Inlet Fan | 2x4 kw YDW double-intake centrifugal fans, air capacity: 25000m3/h |
Exhaust Fan | 1x7.5 kw YDW double-intake centrifugal fans, air capacity: 18000m3/h |
Heating System | 10 pieces x3kw shortwave infrared halogen baking lamps . |
Filter System | Intake air: Dual filtering structure, the primary filter can capture granules larger than 10üm. Ceiling filter capture granules bigger than 5üm. Its filtering rate reaches 98%.; Exhaust air: Water curtain filtering |
Control System | Lighting switch, spraying, baking temperature, time setting, emergency stop, temperature controller, power supply |
Total Power | 39.08kw |
![]() |
