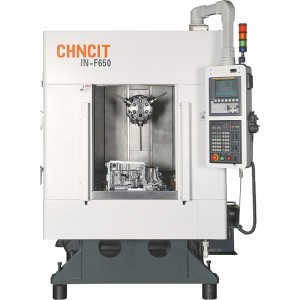

High pressure cleaning machine JN-F650

High pressure cleaning machine JN-F650
High pressure cleaning machine JN-F650
Send Inquiry
Product Code : JN-F650
Brand Name : chncitcnc
Price And Quantity
  • Minimum Order Quantity
  • 1 Set
  • Price Range
  • 0.50 - 9999.00 USD ($)
  • Price
  • 0.5-9999 USD ($)
Product Specifications
  • Product Type
  • cleaning machinery
  • Power
  • 50kw
Product Description

itemm

Description

Unit

JN-F650

Max. Travel range

X axis

mm

600

Y axis

mm

460

Zaxis

mm

500

Working table (A axis)

Rotate angle

degree

0-360

Max. Rotate radius

mm

310

Max. Loading

kg

100

Max. size

mm

728*468

Spindie

Speed

r/min

200

Transmission



Gear drive

Trave丨speed

X/Y/Z fast feed

m/min

48

X/Y/Z cutting speed

m/min

20

Min. Travel

mm

0.005

Tool Magazine

Tool to tool

second

2

Tool capacity

pcs

3

Accuracy

Position

mm

0.08

Repeat Position

mm

+-0.05

Motor

Power

kwa

50

Dimension

Floor plan(W*L*H)

mm

1989*4248*2764

Weight

Machine+water tank

T

3+1.5

Water tank 1

Capacity

L

250

Water tank 2

Capacity

L

700



Standard Accessory

Spindle speed 200 rpm
Oil mist recovery system
Automatic water filtration system
Scouring system
Fully sealed and enclosed shield
Cutting fluid and coolant fluid filtration system
Leveling adjustment set
Automatic power breaker set
Tri-colour set
Too! box
The four Axis

Main spindle water pressure 500 kg/cm2

Note: Due to the continuous research and development of products and continuous technological innovation, the company has the right to change and the right to final interpretation, without prior notice.

â–  Brief Introduction

Jiangnan CNC Machine specializes in CNC R&D, design, manufacturing, sales and after-sales service integration, with the right to import and export self-owned national high-tech enterprises.

High Pressure Cleaning F Series: JN-F650 CNC Deburring & Washing Machine uses power device to produce ultra-high pressure water to wash Parts’ surface, inner cavity and deep hole. It can peel off and wash away the dirt and achieve the purpose of cleaning the surface of the object. Because it uses high-pressure water column to clean up dirt, high-pressure cleaning is also recognized as one of the most scientific, economical and environmentally friendly cleaning methods in the world.

â–  Processing Field

  1. Cleaning operations of petrochemical, machinery manufacturing, electric power, automobiles, ships, railways and highway equipment;
  2. Construction, metallurgy, mining and other industrial cleaning fields;
  3. Machinery and equipment, chamfering parts, deburring, oil and stain removal;
  4. Cleaning sand, casting, template, etc.

50Mpa CNC DEBURRING & WASHING MACHINE

Tool-changing 500 kg cleaning center can effectively remove chips and burrs after processing. It combines precision washing, sand removal and burr removal. It is an indispensable equipment to improve the cleaning accuracy and quality of important parts.

  • High-speed cleaning;

* Adequate cleaning space;

  • Automatic tool changer;

* The most suitable nozzle can be selected automatically to finish the precise cleaning of complex parts.

  • Adopt CNC system for machining, which is easy to operate.

* CNC5 Axis Standard Application;

Operating system can control 5-axis

operation, such as hydraulic parts and other complex parts can also correspond, quickly and accurately achieve cleaning and deburring.

JIANGNAN CNC MACHINE TOOL CO.r LTD.

JIANGNAN TECHNOLOGY (SONGYANG) CO.fLTD.

Headquarters Add: Jiangnan Science Park,

Wenzhou Bridge Industrial Zone, Yueqing City,

Zhejiang Province, China

Factory Add: Wangcun industrial Park, Songyang

County, Lishui City, Zhejiang Province, China

Te I: +86 – 577 – 62867288 – 826

Fax: +86 – 577 – 62867288 – 807

Mob: +86- 18312939399

http: //www.jnsk.com.cn

E-mail: sales@jnsk.com.cn

application:

.Cleaning operations of petrochemical, machinery manufacturing, electric power, automobiles, ships, railways and highway equipment;

.Construction, metallurgy, mining and other industrial cleaning fields;

.Machinery and equipment, chamfering parts, debunring, oil and stain removal;

.Cleaning sand, casting, template, etc.
