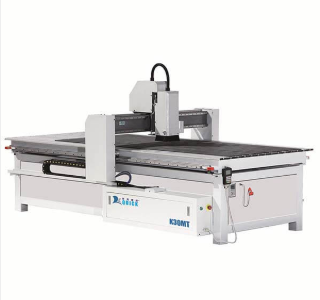

K30MT CNC Router

Next > >

K30MT CNC Router

Get a Price/Quote

Send Inquiry

Product Code : KK

Price And Quantity

Product Description

Features of K30MT CNC Router

Square tube lathe bed and steel gantry make the machine body more stable and much stronger;
Transmission with Taiwan TBI ball screw ensures the high precision;High-speed water cooling spindle can work vigorously with low noise and guarantee long time processing.;
The machine can help to finish different processes by manual tool changing. It is the economical normal style;
It is easy to learn and operate with separate keyboard control system and master the application in a short time.

Model	K30MT
XYZ working area	1,200 x 2,400 x 200mm
XY movement	Rack and pinion, gear drive/Taiwan
Z movement	Ball screw drive/Germany
Guide	Linear ï¿ 20 square/Taiwan
Max. speed	35,000mm/min
Max. cutting speed	25,000mm/min
Table	T-slot vacuum table
Spindle	3.0 kw water cooling spindle
Spindle speed	24,000rpm
Inverter	Fuling
Motor and driver	Stepper motor and leadshine driver
Control system	DSPA11
Working voltage	AC380V/50-60Hz, 3-phase
Software	Artcam & Type3
Command code	G code
Oil lubrication	Manual
Tool Sensor	Manual
