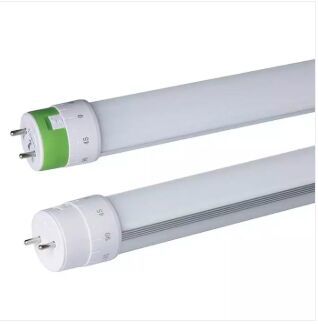

LED Alu.-Plastic Tube

LED Alu.-Plastic Tube
LED Alu.-Plastic Tube
Send Inquiry
Product Code : ESTA-10R
Brand Name : nbjiatong
Price And Quantity
  • Minimum Order Quantity
  • 100 Piece
  • Price
  • 0.5-9999 USD ($)
  • Price Range
  • 0.50 - 9999.00 USD ($)
Product Specifications
  • Voltage
  • 100-240
  • Power
  • 10-30 Watt (w)
  • Weight
  • 0.2-0.42 Kilograms (kg)
  • Warranty
  • 5 Years
Product Description

Description                                                                                                       With internal isolated power supply; Use the most mature international well-known LED as the light source, which can ensure the led tube brightness and long lifetime, also can reduce the light decay. Use the high quality aluminum PCB for LED s better heat dissipation. High-grade PC cover with nice light transmittance (>95%), Transparent PC cover and frosted PC cover are available. No mercury, lead or other hazardous materials; no radiation, no electromagnetic radiation, no frequency flash, instant startup, no hurting eyes. 135 rotatable and lockable end caps including afine sacle fo

 Specification

  ESTA-10R ESTA-20R ESTA-25R ESTA-30R
Input Voltage(AC) 100-240  100-240  100-240  100-240
Frequency(Hz) 50/60 50/60 50/60 50/60
Power(W) 10 20 25 30
Luminous Flux(Lm) 1200 2400 3000 3600
Luminous Efficiency(Lm/W) 120 120 120 120
CCT(K) 3000-6500 3000-6500 3000-6500 3000-6500
Beam Angle 120°  120°  120°  120°
CRI >80 >80 >80 >80
Dimmable No No No No
Surrounding Temperature -20°C~40°C -20°C~40°C -20°C~40°C -20°C~40°C
Energy Efficiency  A+ A+ A+ A+
IP Rate IP20 IP20 IP20 IP20
Size(mm) Φ26*600 Φ26*1200 Φ26*1500 Φ26*1500
N.W.(Kg) 0.2kg 0.34kg 0.42kg 0.42kg
Certification CE/ RoHs/TUV CE/ RoHs/TUV CE/ RoHs/TUV CE/ RoHs/TUV
Adjustable angle 270°  270°  270°  270°
Installation T8/G13 Lamp holder
Material Aluminium body, PC cover
Guarantee 5 Years
Trade Information
  • Payment Terms
  • Telegraphic Transfer (T/T)
  • Supply Ability
  • 10000 Piece Per Month
  • Delivery Time
  • 7-10 Days
  • Sample Available
  • Yes
  • Sample Policy
  • Contact us for information regarding our sample policy
  • Main Export Market(s)
  • Africa, Middle East, Western Europe, Eastern Europe, South America, North America, Central America, Australia, Asia
