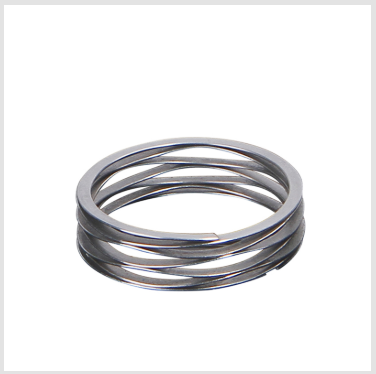

Multi Turn Wave Springs with Plain Ends

Design →Drawing→ Flat the wire → CNC Machining → Heat treatment → Surface → Finishing → Quality Inspection → Packing
Applications
For aerospace, automotive, medical, off-highway, oil & gas , Wind power ,Consumer Industrial
Main Export Markets
Eastern Europe
North America
Packaging & Shippment
FOB Port: Shanghai Lead Time:5- 30 days
Payment & Delivery
Payment Method: Advance TT, T/T，Western Union, PayPal, L/C..
Delivery Details: within 3-50days after confirming the order
Primary Competitive Advantage
Over 3000 types Wave springs and Spiral rings standard parts in stock
Prompt Delivery Quality Approvals
Service Sample Available

• · We have over 10 years of professional experience as a manufacturer of Wave springs , Spiral Retaining Rings , Constant Section Retaining Ring , Laminar Seal Rings
• · We make the Product as your samples or your design fully
• · We have strong researching and developing team to solve Product problem
• · There are lot of raw material suppliers around our factory
• · We supply high quality Product for many world famous companies
• · Our factory got ISO 9001 and TS16949 certificate
• · Small trial orders can be accepted, free sample is available
• · Our price is reasonable and keep top quality for every clients

Description:

Wave springs help to save up to 50% of axial space in your application when compared to conventional coil springs. The result is more compact applications in which unnecessary space and therefore excess material of neighboring components can be reduced to a minimum. The flat wire effectively reduces the solid height of the wave spring so that with the same amount of turns one can visibly reduce the work height without compromising the load or spring deflection. Another advantage is that one can increase the number of turns of the spring design in order to decrease the deflection per turn when the wave spring is compressed. Thus, the spring rate is reduced proportionally to the number of turns and a flat linear characteristic can be generated.

Material:

OIL TEMPERED(SAE1070-1090), HARD DRAWN SAE 1060 – 1075, stainless steel 304,316,631,17-7PH(SUS), beryllium copper, phosphor copper,65Mn, A-286 ,
Inconel Alloy X-750 ,X-718 ,Elgiloy ,MONEL K-500, MONEL 400 etc

Finish:

Oil Dip,Passivation,blacking, zinc/nickel/chrome/silver/gold plating, powder coated etc
